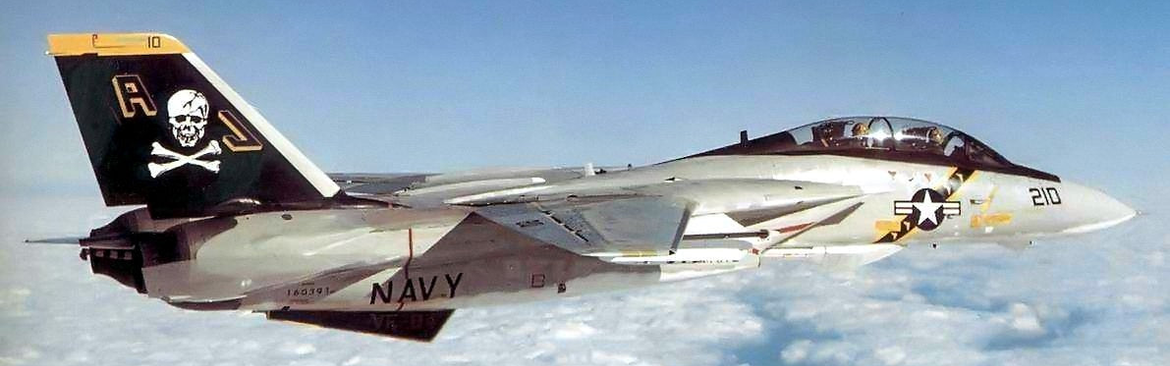

The F-14 Tomcat

The Grumman F-14 Tomcat is a supersonic, twin-engine, two-seat, variable-sweep wing fighter aircraft developed by Grumman for the United States Navy. Designed as both an air superiority fighter and a long-range naval interceptor, the F-14 Tomcat was the first of the American "Teen Series" fighters, which were developed based on combat experience against MiG fighters during the Vietnam War.

Check out this great F-14 aircraft flag from Custom Flag Nation.

Development

Background

In the 1960s, the U.S. Navy sought a new fleet defense interceptor to replace the F-4 Phantom II and the canceled F-111B program. The need for a carrier-based aircraft capable of long-range interception and air superiority led to the initiation of the Naval Fighter Experimental (VFX) program.

VFX Program

The VFX program aimed to develop a fighter with advanced radar and missile systems, superior maneuverability, and the ability to operate from aircraft carriers. Grumman's design, designated 303E, was selected in January 1969, leading to the development of the F-14 Tomcat.

Full-Scale Development

The F-14's first flight occurred on December 21, 1970, and it achieved initial operational capability in 1973. The aircraft was designed to carry the AWG-9 radar and AIM-54 Phoenix missiles, providing long-range interception capabilities. The design incorporated variable-geometry wings, allowing for optimal performance across various flight regimes.

Improvements and Changes

Throughout its service, the F-14 underwent several upgrades. The Tactical Airborne Reconnaissance Pod System (TARPS) was developed in the late 1970s, enabling the F-14 to perform tactical reconnaissance missions. In the 1980s, plans were made to replace the original TF30 engines with General Electric F110-GE-400 turbofans, resulting in the F-14A+ (later redesignated F-14B) and the more advanced F-14D variants. The F-14D featured digital avionics, a glass cockpit, and compatibility with the Link 16 datalink.

Ground Attack Upgrades

Initially designed for air superiority and fleet defense, the F-14's role expanded to include ground attack missions. In the 1990s, the Low Altitude Navigation and Targeting Infrared for Night (LANTIRN) pod system was integrated, allowing the F-14 to perform precision ground-attack missions, earning it the nickname "Bombcat."

The Aviationist

Production Termination

Production of the F-14 Tomcat ceased in 1991 after 712 units were built. The aircraft remained in service with the U.S. Navy until its retirement on September 22, 2006, replaced by the Boeing F/A-18E/F Super Hornet.

Design

Variable-Geometry Wings and Aerodynamic Design

The F-14's variable-geometry wings could sweep between 20° and 68° in flight, controlled automatically by the Central Air Data Computer (CADC) to maintain optimal lift-to-drag ratio. This design allowed for high-speed intercepts with wings swept back and enhanced maneuverability with wings forward. The wing pivot points were widely spaced, enabling weaponry to be mounted on fixed pylons, reducing drag. The fuselage contributed significantly to lift, resulting in lower wing loading.

Engines

The F-14A was powered by two Pratt & Whitney TF30-P-412A turbofan engines, each providing 20,900 pounds of thrust with afterburner. These engines were later replaced in the F-14B and F-14D variants with General Electric F110-GE-400 engines, offering improved performance and reliability.

Avionics and Flight Controls

The F-14 Tomcat featured the AN/AWG-9 radar system, capable of tracking up to 24 targets simultaneously and guiding AIM-54 Phoenix missiles to six targets. The aircraft's avionics suite included the Central Air Data Computer (CADC) for flight control and navigation. The F-14D variant introduced digital avionics, a glass cockpit, and compatibility with the Link 16 datalink.

Armament

The F-14's primary armament included the AIM-54 Phoenix long-range air-to-air missile, AIM-7 Sparrow medium-range missile, and AIM-9 Sidewinder short-range missile. It was also equipped with an internal 20mm M61 Vulcan rotary cannon. With the integration of the LANTIRN pod, the F-14 gained the capability to deliver precision-guided munitions, expanding its role to include ground-attack missions.

Operational History

United States

The F-14 Tomcat entered service with the U.S. Navy in 1974, replacing the F-4 Phantom II. It served as the Navy's primary maritime air superiority fighter, fleet defense interceptor, and tactical reconnaissance platform. The F-14 saw combat during various conflicts, including the Gulf of Sidra incidents and Operation Desert Storm. It was retired from U.S. Navy service in 2006.

Iran

In 1976, Iran acquired 79 F-14s, becoming the only foreign operator of the aircraft. During the Iran–Iraq War, Iranian F-14s were credited with numerous aerial victories. As of 2024, the F-14 remains in service with Iran's air force, though in limited numbers due to a lack of spare parts.

Variants

F-14A

The initial production model, powered by the Pratt & Whitney TF30 engines, the F-14A was the first operational version of the Tomcat. Despite its revolutionary avionics and weaponry, the TF30 engines were a consistent source of reliability issues, particularly in high-demand scenarios like dogfights. Over 500 units of the F-14A were produced, serving as the backbone of U.S. Navy squadrons in the aircraft's early operational years.

F-14B

The F-14B introduced significant improvements to the propulsion system by replacing the problematic TF30 engines with General Electric F110-GE-400 turbofans. This upgrade enhanced thrust and reliability, improving overall flight performance. The F-14B also received updated avionics and other structural improvements. It was initially referred to as the F-14A+ before being redesignated as the F-14B.

F-14D

The most advanced variant, the F-14D, featured a comprehensive overhaul of avionics, integrating digital systems and a glass cockpit. It replaced the AWG-9 radar with the AN/APG-71, offering improved performance in electronic warfare environments. The F-14D also retained the F110 engines, enhancing its operational envelope. Despite being the most capable Tomcat variant, production numbers were limited due to budget constraints, with some F-14A units being retrofitted to F-14D standards.

TARPS and Reconnaissance Variants

The Tactical Airborne Reconnaissance Pod System (TARPS) allowed the F-14 to perform high-speed reconnaissance missions, a critical capability for the Navy. Over time, several F-14s were specially equipped for reconnaissance roles, further diversifying the platform's utility.

Operational Achievements

Cold War Patrols

During the Cold War, the F-14 Tomcat played a pivotal role in maintaining U.S. naval air superiority. It conducted long-range patrols over international waters and frequently intercepted Soviet aircraft probing U.S. carrier battle groups.

Gulf of Sidra Incidents

The F-14 was involved in two notable incidents over the Gulf of Sidra in 1981 and 1989, where it successfully engaged and shot down Libyan fighters. These engagements demonstrated the Tomcat's superiority in aerial combat.

Operation Desert Storm

In the Gulf War, the F-14 conducted fleet defense, reconnaissance, and limited ground-attack missions. Although its primary air-to-air engagements were limited during this conflict, its presence ensured the protection of carrier groups.

Post-Cold War and Ground Attack Role

With the end of the Cold War, the F-14's role shifted to include ground-attack missions, leveraging the integration of the LANTIRN pod. This transformation, exemplified during operations in the Balkans and the Middle East, showcased the Tomcat's adaptability.

Iranian Operations

Iran's use of the F-14 is unique, with its fleet initially maintained with U.S. support before relations soured. During the Iran-Iraq War, Iranian Tomcats reportedly achieved significant air-to-air kills, often outmatching Iraqi aircraft. Despite sanctions, Iran has kept some F-14s operational by reverse-engineering parts and receiving support from black market sources.

Retirement and Legacy

U.S. Navy Retirement

The F-14 was officially retired from U.S. Navy service in 2006, replaced by the more versatile and cost-effective F/A-18E/F Super Hornet. The Tomcat's high maintenance costs and the aging airframe contributed to this decision, even as its combat capabilities remained formidable.

Pop Culture and Iconic Status

The F-14 gained iconic status through its role in the 1986 film Top Gun, where it was immortalized as the ultimate symbol of American airpower. Its appearance in media cemented its place as one of the most recognizable and beloved fighter jets.

Continued Use in Iran

As of today, Iran remains the only operator of the F-14, utilizing it in limited capacity. This unique status underscores the aircraft's enduring value and versatility, even decades after its introduction.

Conclusion

The Grumman F-14 Tomcat stands as a symbol of American innovation and naval airpower. From its pioneering variable-sweep wing design to its role as both an interceptor and multi-mission fighter, the Tomcat has left an indelible mark on aviation history. Its versatility, combat record, and iconic status ensure its place among the most revered aircraft of the 20th century. Even in retirement, the legend of the F-14 lives on, celebrated by aviators, enthusiasts, and historians worldwide.
