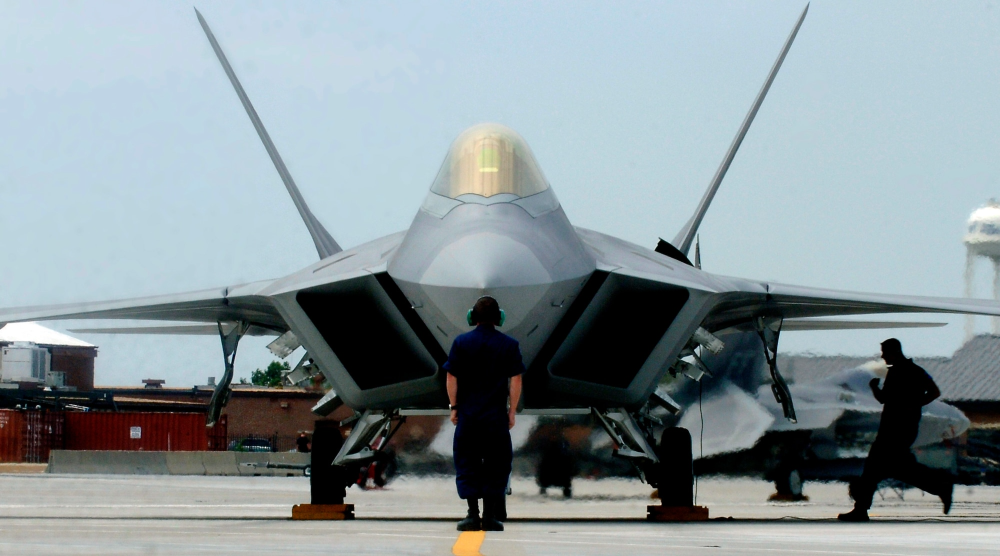

The Lockheed F-22 Raptor: A Deep Dive Into Its Evolution, Design, and Role

Introduction

The Lockheed Martin F-22 Raptor is often regarded as the world’s premier fifth-generation air superiority fighter. Designed primarily for dominance in air-to-air combat, the F-22 Raptor is also capable of performing ground attack, electronic warfare, and signals intelligence operations. Its stealth capabilities, supercruise performance, and unmatched maneuverability allow it to engage and defeat adversaries before being detected, making it a critical component of the United States Air Force's air strategy.

[caption id="attachment_1439" align="aligncenter" width="178"] F-22 Aircraft Flag From Custom Flag Nation[/caption]

Shop for F-22 Aircraft Flag

Development and Origins

The F-22’s origins lie in the Advanced Tactical Fighter (ATF) program, which began in 1981 as a response to intelligence reports on the growing capabilities of Soviet aircraft such as the Sukhoi Su-27 and Mikoyan MiG-29, as well as advances in surface-to-air missile systems. The primary goal of the ATF was to replace the aging F-15 Eagle and F-16 Fighting Falcon with an aircraft that could outperform these new Soviet platforms while maintaining technological superiority into the 21st century​.

By the mid-1980s, Lockheed, teaming with Boeing and General Dynamics, won the contract to develop what would become the YF-22, a prototype that outperformed the rival YF-23 designed by Northrop and McDonnell Douglas. The YF-22's agility, stealth capabilities, and cost-effectiveness led to its selection, culminating in the first flight of the F-22 prototype in 1997​. The F-22 officially entered service in 2005, after nearly 25 years of development​.

Design and Key Features

The F-22 Raptor is notable for combining multiple cutting-edge technologies that allow it to excel in various combat scenarios:

1. Stealth Technology: The F-22's stealth is achieved through a combination of design elements. Its shape is optimized to deflect radar waves, and it incorporates advanced radar-absorbent materials (RAM) that minimize its radar cross-section (RCS). This enables the aircraft to operate undetected in contested environments, giving it a crucial advantage over non-stealthy fighters. Unlike previous stealth aircraft, such as the F-117 Nighthawk, the F-22 is designed for air-to-air combat while remaining virtually invisible to most radar systems​.
2. Supercruise: The F-22’s Pratt & Whitney F119-PW-100 engines enable it to fly at supersonic speeds without using afterburners, a feature known as supercruise. This allows the F-22 to cover long distances quickly while preserving fuel, extending its combat range significantly compared to traditional fighters. The F-22 can sustain speeds of up to Mach 1.8, an impressive feat for an aircraft designed with stealth in mind​.
3. Thrust Vectoring: The F-22 is equipped with two-dimensional thrust-vectoring nozzles on its engines. This technology enhances the aircraft's agility, enabling it to perform tight maneuvers that would be impossible for conventional aircraft. Combined with its fly-by-wire flight control system, the F-22 has exceptional dogfighting capabilities, allowing it to evade or outmaneuver opponents during close engagements​.
4. Advanced Avionics and Sensors: The F-22 integrates several highly sophisticated sensor systems, including the AN/APG-77 Active Electronically Scanned Array (AESA) radar. This radar allows the Raptor to detect and track multiple targets at extreme ranges, even in electronically jammed environments. In addition, the aircraft's sensor fusion capabilities combine information from its radar, electronic warfare systems, and other sensors into a single, easy-to-understand display for the pilot​.
5. Weapons Systems: The F-22’s armament is housed within internal weapons bays, a crucial feature for maintaining its stealth profile. It can carry six AIM-120 AMRAAM missiles for beyond-visual-range (BVR) combat and two AIM-9 Sidewinder missiles for close-range engagements. For ground attack missions, the F-22 can deploy Joint Direct Attack Munitions (JDAM). The aircraft is also equipped with a M61 Vulcan 20mm cannon for close-range combat​.

F-22 Raptor Specifications

The F-22 Raptor boasts an array of cutting-edge technologies, making it one of the most advanced fighters ever built. Below are the aircraft's key specifications, encompassing performance, dimensions, and armament.

General Characteristics

• Manufacturer: Lockheed Martin Aeronautics (Prime contractor), Boeing (Partner for wings, aft fuselage, avionics integration)
• Primary User: United States Air Force
• Crew: 1 (pilot)
• First Flight: September 7, 1997
• Introduction: December 15, 2005
• Number Built: 195 (including 8 test aircraft)​

Dimensions

• Length: 62 ft 1 in (18.90 m)
• Wingspan: 44 ft 6 in (13.56 m)
• Height: 16 ft 8 in (5.08 m)
• Wing Area: 840 ft² (78.04 m²)
• Empty Weight: 43,340 lb (19,700 kg)
• Maximum Takeoff Weight: 83,500 lb (37,800 kg)

Powerplant

• Engines: 2 × Pratt & Whitney F119-PW-100 afterburning turbofans with two-dimensional thrust vectoring nozzles
• Thrust:
  • Dry thrust: 23,500 lbf (104 kN) each
  • Thrust with afterburner: 35,000 lbf (156 kN) each​

Performance

• Maximum Speed:
  • At altitude: Mach 2.25 (1,500 mph or 2,414 km/h)
  • Supercruise: Mach 1.82 (1,220 mph or 1,963 km/h) without afterburners​
• Range: 1,600 nmi (1,840 mi or 3,000 km) with internal fuel
• Combat Radius: 460 nmi (530 mi or 850 km)
• Service Ceiling: 65,000 ft (20,000 m)
• Rate of Climb: Classified, but estimated to be over 60,000 ft/min (305 m/s)
• G-Limits: +9.0 g

Avionics

• Radar: AN/APG-77 AESA (Active Electronically Scanned Array) radar, which provides advanced multi-target tracking, targeting, and electronic countermeasures.
• Integrated Avionics Suite: Provides sensor fusion capabilities, processing information from radar, infrared, and electronic warfare systems into a single display for the pilot​.

Armament

• Internal Weapons Bays:
  • 6 × AIM-120C/D AMRAAM missiles for beyond-visual-range air-to-air combat.
  • 2 × AIM-9 Sidewinder short-range infrared-guided missiles for close-range dogfights.
• Gun: 1 × M61A2 Vulcan 20 mm rotary cannon (480 rounds).
• Ground Attack Capability: Up to two 1,000 lb (450 kg) GBU-32 JDAM bombs or 250 lb (113 kg) Small Diameter Bombs (SDBs) can be carried in the internal weapons bays​.

Stealth and Survivability

• Radar Cross Section (RCS): Classified, but believed to be approximately 0.0001 to 0.0002 m², equivalent to the size of a small bird or insect, depending on the radar frequency​.
• Electronic Warfare: Advanced electronic countermeasures (ECM) system for jamming enemy radar and missile targeting systems.

These specifications reflect the unique blend of stealth, speed, and firepower that makes the F-22 Raptor a dominant air superiority fighter in the U.S. arsenal.

Operational History

While the F-22 was initially conceived as an air superiority fighter, it has proven versatile in its deployment. The Raptor's combat debut occurred in 2014 during operations against ISIS in Syria, where it was used for precision strikes and intelligence gathering. Its stealth capabilities made it ideal for penetrating heavily defended airspace while avoiding detection​.

Despite its prowess, the F-22 has not been extensively deployed in air-to-air combat, largely because the U.S. has not faced peer-level adversaries in recent conflicts. However, the aircraft remains a critical deterrent against near-peer competitors like Russia and China, whose advancements in aircraft technology have raised concerns about future aerial engagements​.

Limitations and Controversies

Though the F-22 is widely regarded as one of the most capable fighter aircraft in the world, its development and deployment have not been without controversy. The Raptor’s high production costs—estimated at approximately $150 million per aircraft—led to the U.S. government significantly scaling back its original purchase plans. Initially, the Air Force intended to procure over 750 F-22s, but this was reduced to 381, and eventually, production was halted at 195 units (187 operational aircraft) by 2011.

One key factor in the reduced production run was the emergence of the F-35 Lightning II, a multi-role fighter developed under the Joint Strike Fighter (JSF) program. While the F-22 excels in air-to-air combat, the F-35 offers a more cost-effective solution with broader capabilities, particularly in ground attack and intelligence missions. The high operational costs of the F-22, coupled with maintenance challenges, also contributed to the decision to end its production​.

The Future of the F-22

As the U.S. Air Force looks toward the future, the F-22 will remain in service for at least another two decades. It is expected to be an integral part of the USAF's tactical air power until it is eventually replaced by the Next Generation Air Dominance (NGAD) fighter. Despite being a cutting-edge design, the F-22 will continue to receive upgrades to ensure its viability in modern combat, including improved radar, sensors, and avionics​.

The F-22's role in the Air Force is expected to evolve as new threats emerge, particularly from adversaries developing their own fifth-generation fighters, such as China's Chengdu J-20 and Russia's Sukhoi Su-57. However, the Raptor’s combination of stealth, speed, and lethality ensures that it will remain a formidable presence in global air combat​.

Current Units Operating the F-22 Raptor

As of 2024, the F-22 Raptor is operated by several U.S. Air Force units across different airbases. These units are part of Air Combat Command (ACC) and Pacific Air Forces (PACAF), with a focus on air superiority missions and readiness for potential conflict zones. The following are the primary F-22 operating units and their respective bases:

1. 1st Fighter Wing (FW) at Joint Base Langley-Eustis, Virginia:
   • The 27th Fighter Squadron (FS) and 94th Fighter Squadron (FS) operate from this base.
   • Langley is home to some of the oldest and most prestigious fighter units in the USAF, with the F-22 replacing the F-15C Eagle here​.
2. 3rd Wing (WG) at Joint Base Elmendorf-Richardson, Alaska:
   • The 90th Fighter Squadron (FS) and 525th Fighter Squadron (FS) fly the F-22 from this base.
   • The strategic location in Alaska allows for rapid deployment to the Indo-Pacific region, including operations over the Arctic and Pacific​.
3. 154th Wing (WG) of the Hawaii Air National Guard at Joint Base Pearl Harbor-Hickam, Hawaii:
   • The 199th Fighter Squadron (FS), in partnership with the active-duty 19th Fighter Squadron (FS), operates F-22s as part of the Pacific Air Forces.
   • This base plays a crucial role in defending U.S. interests across the Pacific​.
4. 477th Fighter Group (FG) at Joint Base Elmendorf-Richardson, Alaska:
   • The 302nd Fighter Squadron (FS) operates under the Air Force Reserve Command (AFRC), flying F-22s alongside the 3rd Wing's active-duty squadrons​.
5. 53rd Wing at Eglin Air Force Base, Florida:
   • The 43rd Fighter Squadron (FS) conducts F-22 training for new pilots.
   • This squadron is responsible for training all F-22 pilots in the Air Force​.
6. Air National Guard (ANG):
   • Some units, such as the 192nd Fighter Wing (FW) in Virginia, support F-22 operations through integration with active-duty units​.

Notable Accidents and Aircraft Losses

Despite its impressive track record, the F-22 has experienced a few notable accidents since its introduction:

1. Edwards Air Force Base, California – 2004:
   • An F-22 crashed during a test flight in December 2004. The aircraft was destroyed, but the pilot safely ejected. The crash was attributed to software issues with the flight control system​.
2. Elmendorf Air Force Base, Alaska – 2010:
   • In November 2010, an F-22 from the 525th Fighter Squadron crashed during a routine training mission, tragically killing the pilot, Captain Jeffrey Haney. Investigators found that a malfunction in the aircraft’s oxygen system (OBOGS) contributed to the crash​.
3. Tyndall Air Force Base, Florida – 2012:
   • An F-22 crashed in November 2012 during a routine flight. The pilot successfully ejected, and the aircraft was lost. The cause of the crash was linked to a combination of human error and technical malfunctions​.
4. Eglin Air Force Base, Florida – 2020:
   • An F-22 crashed near the base in May 2020 during a routine training exercise. The pilot ejected safely. The crash investigation pointed to a technical failure as the cause​.

Aircraft Maintenance and Loss Factors

The high cost and complexity of maintaining the F-22 have been consistent issues. It has one of the highest per-hour flight costs of any USAF aircraft, and its maintenance requirements, including the upkeep of its specialized stealth coatings, demand a great deal of resources. Additionally, due to the advanced technology integrated into the F-22, these maintenance demands have led to a relatively low mission-capable rate at times, which means not all aircraft are always ready for immediate deployment​.

The Lockheed Martin F-22 Raptor is a masterpiece of engineering that has set the standard for modern air superiority fighters. Its unmatched blend of stealth, speed, agility, and sensor fusion capabilities make it a dominant force in the skies. Although its production was curtailed, the Raptor continues to play a crucial role in the U.S. Air Force’s arsenal, with plans for it to remain in service for years to come.
